Door Vision Panel Inserts

Wood/Metal Door Style

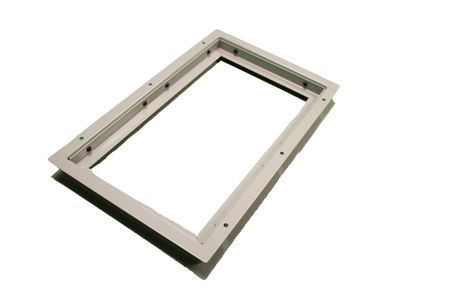

Part No: 7800-92101 (Shown)

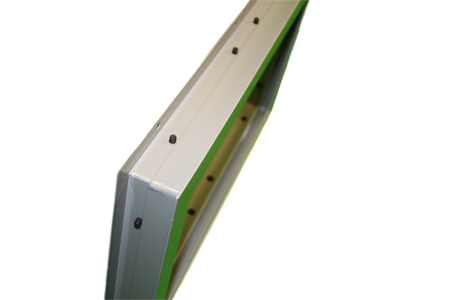

These Vision Panel Insert Assemblies are designed to fit any existing Wood/Hollow Metal doors. It will allow for visual observation of to the inmate without having to open the secure cell door and breach the guards or inmates security.

This Vision Panel Insert is manufactured using 12ga sheet metal for the frame and 11ga formed angle for the glass securing angles for a positive mount. They are designed for 3/8" to 1/2" security glass (quoted separate).

Specifications:

Vision net opening: 4" to 24" Width x 12" to 30" Height

Overall size: Vision net opening + 4" at Width and Height

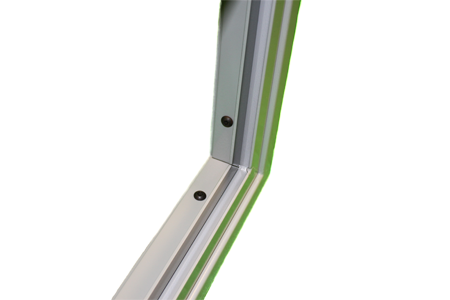

Glass Stops: 1" x 1" 11ga secured with 1/4-28 Security Button Head Torx screws

Door thickness range: 1 3/4" to 2 1/4"

Finish: Powdercoat Primer/Gray ready for paint

End Users

State Correctional Facilities

County Jails

City Police Stations

Federal Correctional Facilities

Border Patrol Stations

Installation

Installlation Drawings: Engineered installation drawings are included for each area where the product is to be installed

Pre-Installation Proceedure: The mounting surface shall be secure and rigid. All areas where the closure angles are to be mounted need to be free of surface obstacals that would impair a tight secure installation

Installation Proceedure: Use only qualified Journeyman Installers for the installation proceedure. Layout and install the vertical columns, mullions and closure angles per the installation drawings supplied true and plumb. Fit and install the fixed panels and doors per the installation drawings supplied. When all panels and doors are measured and tested proceed with the final field welding to the closure angles and closure plates. Clean and dress any exposed welds prior to paint touchup

Final Finish: It is the OWNERS responsiblity for the paint type, color and application
