Wicket Door Panels

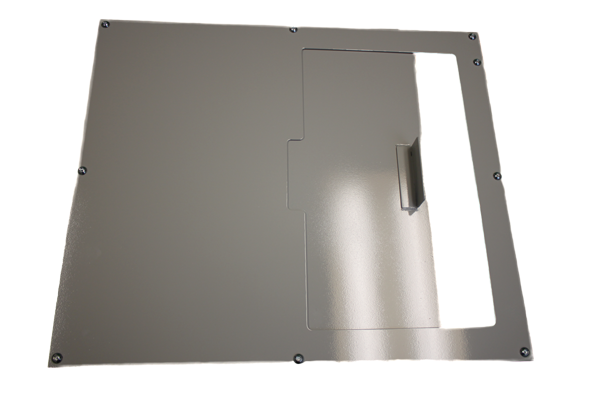

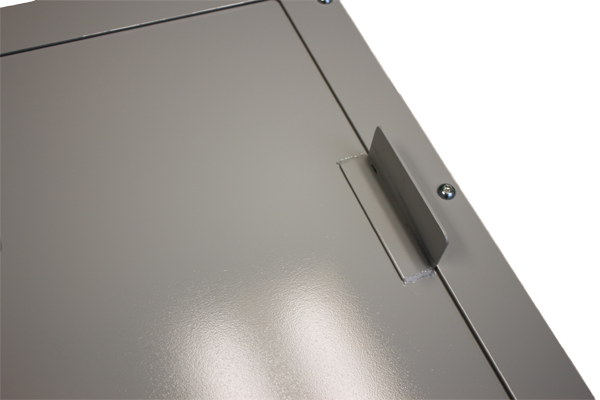

Wicket Door - Sliding Style

Part No: 7104L-08-M0 (Shown)

Description

This Wicket Door - Sliding Style was designed to work with the DDS Vision Panel Inserts and able to bolt to any existing wood or hollow metal door. It will allow for visual observation of to the inmate without having to open the secure cell door and breach the guards or inmates security.

This Wicket Door Panel is manufactured using 12ga HR steel for the frame and sliding Wicket Door. The frame is secured to the door using 5/16-18 Security Button Head Torx screws for a positive mount.

Specifications:

Door Handing: L or R see Door Handing Chart below

Vision net opening: 4" to 10" Width x 12" to 20" Height

Overall size: Varies with size

Paint: Powdercoat Primer/Gray ready for paint

Options Available:

Powder Coating: Powder Coated in Cardinal Standard Colors from Powder Color Brochure below - Up Charge

Stainless Steel: Stainless steel 3cr12 with PC-Primer/Gray finish or 304 Mill finish - Up-Charge
