Food/Cuff Passes

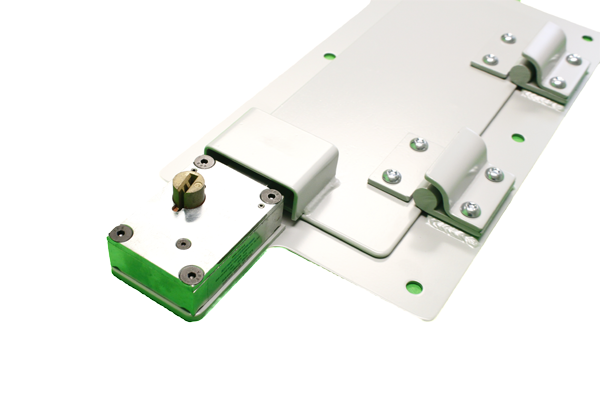

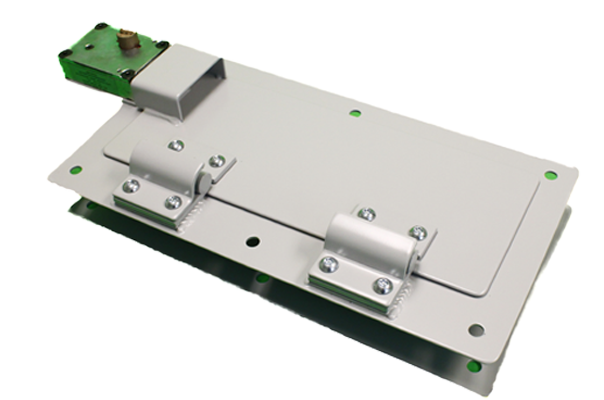

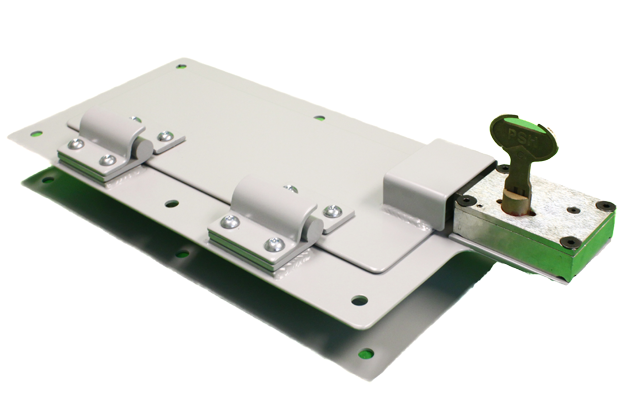

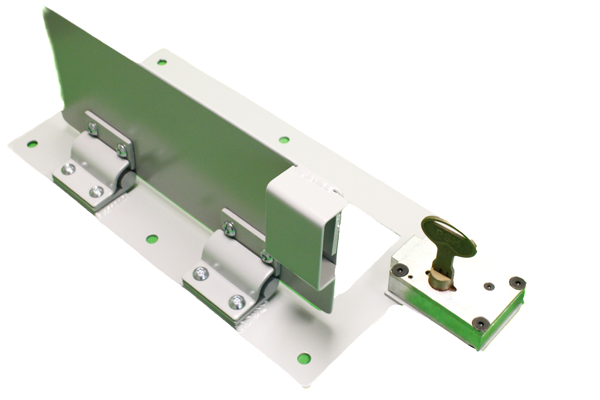

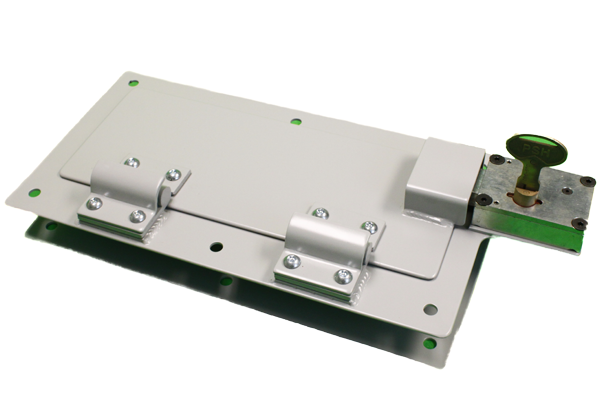

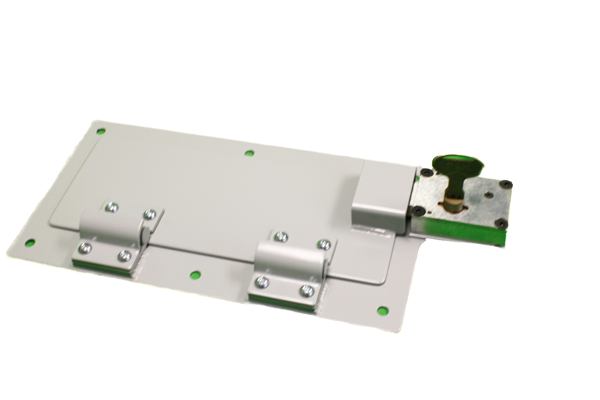

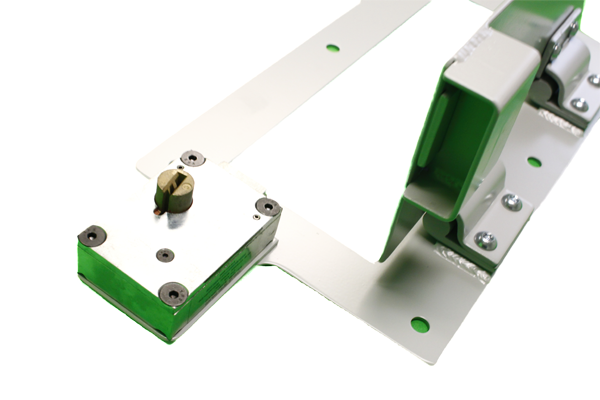

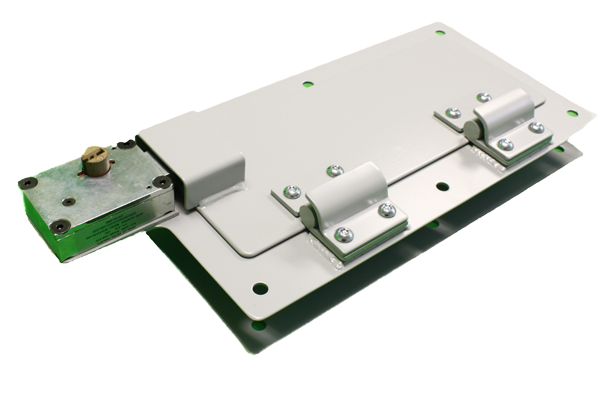

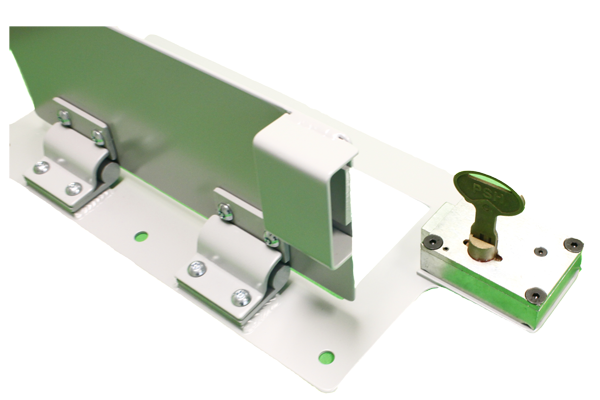

SideWinder w/Deadbolt Lock - Weld-On

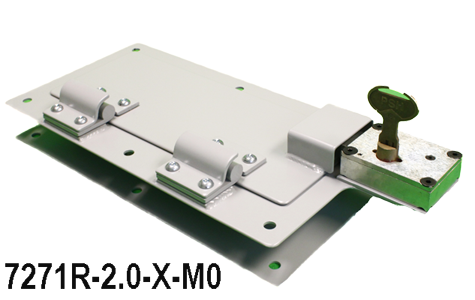

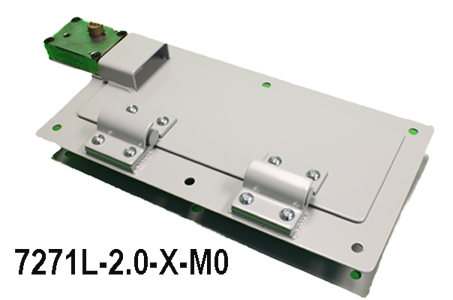

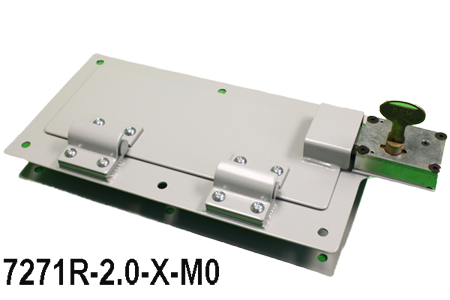

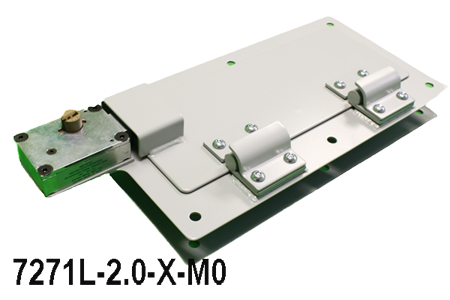

Part No: 7271L/R-2.0-X-M0(Shown)

This handed SideWinder Food/Cuff Pass Door was designed to be welded to any existing hollow metal door that has a either a mesh or glass panel located directly above. It's horizontal profile will fit at the appropriate height on the door, the vision panel will not be obstructed with the lock. It will allow for inmate cuffing or food trays to be passed directly to the inmate without having to open the secure cell door and breaching the guards or inmates security.

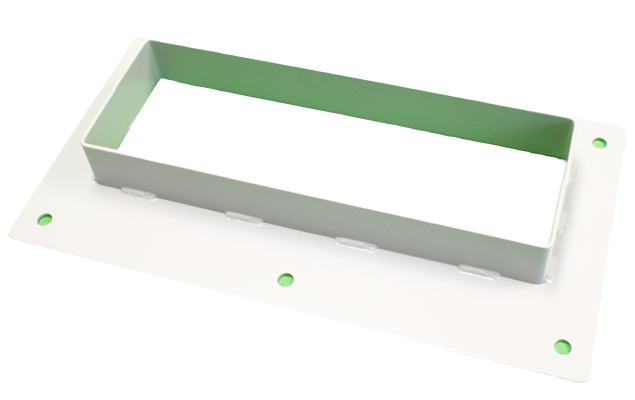

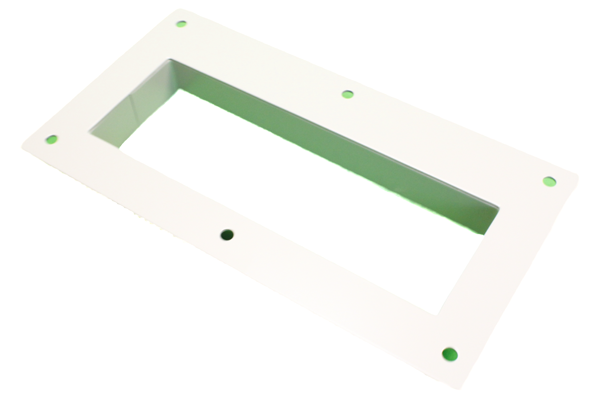

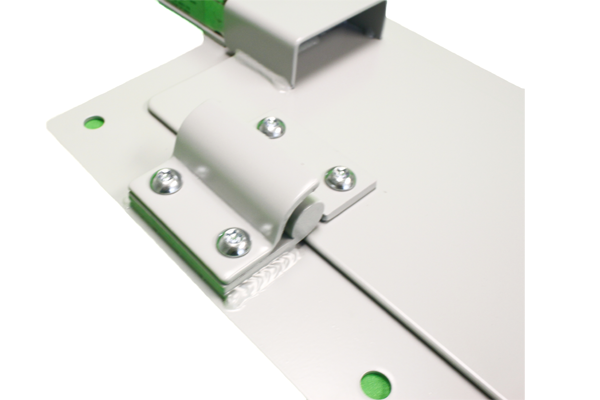

This Food/Cuff Pass-Thru is manufactured using 10ga(.135") for the frame and 7ga(.179") for the door with a 10ga(.135") stiffener, heavy duty hinges w/removable stops and security torx screws. They are designed to use a No. 12 Deadbolt Lock(quoted separate, see Hardware & Locks tab above) this requires a guard with the key to have total control of the pass door.

Standard Specifications:

Pass-Thru opening: 15" x 5"

Overall size: 22" x 10"

Material: -M0 HR Steel

Lock Prep: #10 Series Deadbolt

Door thickness range: 1 3/4" to 2 1/4"

Finish: -X Powdercoat Primer/Gray ready for paint

Options Available:

Stainless Steel: -M8 3cr12, -M5 304-2B Mill Finish, -M6 304-#4 Brushed Finish - Up-Charge

Special Finish: -S Powder Coated in Cardinal Standard Colors from Powder Color Brochure below - Up Charge

Door Handing: L or R see the Door Handing Chart to properly hand the door
