Mechanical Locks

Deadlocks

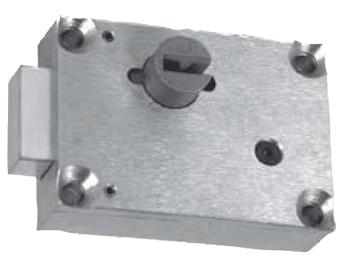

10 Series Paracentric Deadlock

Part No: 7L 12RH-5P1-C(Shown)

The Series 10 Deadlock are used in many applications, Access Doors, Device Pilasters, Food/Cuff Passes, Key Cabinets, Baton Cabinets and Swing Doors. They use a Paracentric Key that can be keyed on either side or both side. The lock bolt standard throw is 5/8" with 1/2" projection, but is also available in 1 1/4" projection. The lock tumblers a heavy duty brass pick-proof in 5 or 6 plate combos.

Specifications:

Size: 4 1/4" x 3" x 1 1/4" Thick

Key Cylinder: -P Paracentric style

Material: Steel

Bolt Material: 5/8" x 1 1/2" Steel

Finishes: Zinc plated

Fasteners: 4ea. 5/16-18 x 1 3/4" Security Flathead Torx

Mounting Template: Series 10

Options Available:

Cylinder Key Cut: 7L 12RH-5P1-"A" or "C"

Keyed Both Sides: 7L 16RH-5P2-C

Six Tumbler: 7L 12RH-6P1-C

15 Series Mogul Deadlock

Part No: 7L 15RH-5M1(Shown)

The Series 15 Deadlock w/Mogul Key Cylinder are used in many swing door applications, Access Doors, Food/Cuff Passes, Baton Cabinets, Key Cabinets and Swing Doors. They use a Medico Style that can be keyed on either side or both sides. The lock bolt standard throw is 5/8" with 1/2" projection, but is also available in 1 1/4" projection. The lock tumblers a heavy duty brass pick-proof in 5 or 6 plate combos.

Specifications:

Size: 4 1/4" x 3" x 1 1/4" Thick

Key Cylinder: -M Mogul style

Material: Steel

Bolt Material: 5/8" x 1 1/2" Steel w/3 hardened pins

Finishes: Zinc plated

Fasteners: 4ea. 3/8-16 x 1 3/4" Security Flathead Torx

Mounting Template: Series 15

Options Available:

Keyed Both Sides: 7L 15RH-5M2

Six Pin Tumbler: 7L 15RH-6M1

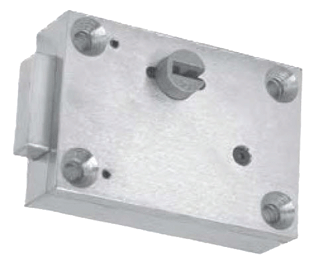

80 Series Paracentric Deadlocks

Part No: 7L 82LH-5P1-C(Shown)

The Series 80 Deadlock are used in Swing Door applications, Access Doors and Swing Doors. They use a Paracentric Key that can be keyed on either side or both side. The lock bolt standard throw is 3/4" with 1/2" projection, but is also available in 1 1/4" projection. The lock tumblers a heavy duty brass pick-proof in 5 or 6 plate combos.

Specifications:

Size: 5 1/2" x 3 3/4" x 1 1/2" Thick

Key Cylinder: -P Paracentric style

Material: Steel

Bolt Material: 3/4" x 2" Steel w/3 hardened pins

Finishes: Zinc plated

Fasteners: 4ea. 3/8-16 x 2" Security Flathead Torx

Mounting Template: Series 80

Options Available:

Cylinder Key Cut: 7L 82RH-5P1-"A" or "C"

Keyed Both Sides: 7L 86RH-5P2-C

Six Tumbler: 7L 82RH-6P1-C

85 Series Mogul Deadlock

Part No: 7L 85RH-5M1(Shown)

The Series 85 Deadlock w/Mogul Key Cylinder are used in Swing Door applications, Access Doors and Swing Doors. They use a Medico Style that can be keyed on either side or both side. The lock bolt standard throw is 3/4" with 1/2" projection, but is also available in 1 1/4" projection. The lock tumblers a heavy duty brass pick-proof in 5 or 6 plate combos.

Specifications:

Size: 5 1/2" x 3 3/4" x 1 1/2" Thick

Key Cylinder: Mogul style

Material: Steel

Bolt Material: 3/4" x 2" Steel w/3 hardened pins

Finishes: Zinc plated

Fasteners: 4ea. 3/8-16 x 2" Security Flathead Torx

Mounting Template: Series 85

Options Available:

Keyed Both Sides: 7L 85RH-5M2

Six Pin Tumbler: 7L 85RH-6M1

Snaplatches

17 Series Paracentric Snaplatch

Part No: 7L 17RHRB-5P1-C(Shown)

The Series 17 Snaplatch are used in many applications where a push to close application is desired, Access Doors, Food/Cuff Passes, Key Cabinets and Baton Cabinets. They use a Paracentric Key that can be keyed on either side or both sides. The lock bolt standard throw is 1/2" with 1/2" projection, but is also available in Extended 1 1/4" projection. The lock tumblers a heavy duty brass pick-proof in 5 or 6 plate combos.

Specifications:

Size: 4 1/4" x 3" x 1 1/4" Thick

Key Cylinder: -P Paracentric style

Material: Steel

Bolt Material: 1/2" x 1" Steel

Finishes: Zinc plated

Fasteners: 4ea. 5/16-18 x 1 3/4" Security Flathead Torx

Mounting Template: Series 17

Options Available:

Bolt Handing: 7L 17RH"SB" Standard or "RB" Reverse-5P1-C

Cylinder Key Cut: 7L 17RH-5P1-"A" or "C"

Six Tumbler: 7L 17RH-6P1-C

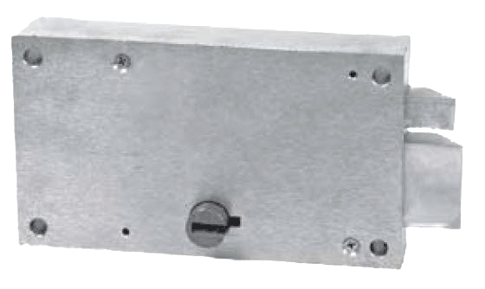

70 Series Paracentric Snaplatch w/Deadlock

Part No: 7L 70RHSB-5P1-C(Shown)

The Series 70 Snaplatch w/Deadlock are used in applications where a push to close w/Deadlock application is desired, Swing Doors. They use a Paracentric Key that can be keyed on either side or both sides. The lock bolt standard throw is 3/4" with 1/2" projection, but is also available in Extended 1 1/4" projection. The lock tumblers a heavy duty brass pick-proof in 5 or 6 plate combos.

Specifications:

Size: 8 3/4" x 5" x 1 9/16" Thick

Key Cylinder: -P Paracentric style

Material: Steel

Bolt Material: 3/4" x 2" Steel

Finishes: Zinc plated

Fasteners: 4ea. 5/16-18 x 2" Security Flathead Torx

Mounting Template: Series 70

Options Available:

Bolt Handing: 7L 70RH"SB" Standard or "RB" Reverse-5P1-C

Cylinder Key Cut: 7L 70RH-5P1-"A" or "C"

Keyed Both Sides: 7L 70RH-5P2-C

Six Tumbler: 7L 70RH-6P1-C

Hooklatch

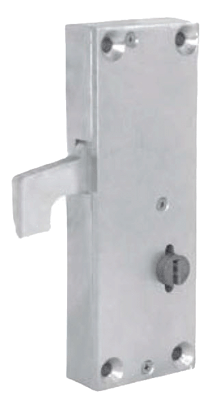

30 Series Paracentric Hooklatch

Part No: 7L 30DLH-5P1-C(Shown)

The Series 30D Hookbolt are used in a slide to close applications, Manual Tracksets (See Door Devices above). They use a Paracentric Key that can be keyed on either side or both sides. The lock bolt size is 1/2" with 2 1/8" projection. The lock tumblers a heavy duty brass pick-proof in 5 or 6 plate combos.

Specifications:

Size: 3 1/2" x 10" x 1 1/2" Thick

Key Cylinder: -P Paracentric style

Material: Steel

Bolt Material: 1/2" x 2" Steel

Finishes: Zinc plated

Fasteners: 4ea. 5/16-18 x 2" Security Flathead Torx

Mounting Template: Series 30D

Options Available:

Cylinder Key Cut: 7L 30DRH-5P1-"A" or "C"

Keyed Both Sides: 7L 30RH-5P2-C

Six Tumbler: 7L 30DRH-6P1-C
