Detention Door Hinges

Full Mortise Door Hinges



Part No: 7L 3FP(Shown)

These Heavy Duty hinges are designed for Prison environments, they are Full Mortise

Specifications:

Size: 3" x 4" x 1/4" Thick

Material: HR Steel

Finishes: PC-Primer/Gray

Fasteners: 4ea. 3/8-16 x 3/4" Security Torx Flathead

Options Available:

Powdercoat Finish: Any DDS Standard Color



Part No: 7L 4-1/2 FMSSICS(Shown)

These hinges are designed for Prison environments, they are Full Mortise w/Intergal Cast Studs, and Anti_Friction Bearings able to support a 300 lb door (3 Hinges). These hinges are maintenance free

Specifications:

Size: 4 1/2" x 4 1/2" x 3/16" Thick

Material: Investment Cast Stainless Steel

Finishes: US32D (#4 Brush)

Fasteners: 8ea. 1/4-20 x 1/2" Security Torx Flathead

Mounting Template: ANSI/BHMA A156.7

Options Available:

Powdercoat Finish: Any DDS Standard Color



Part No: 7L 4-1/2 FMSSICS HD(Shown)

These Heavy Duty hinges are designed for Prison environments, they are Full Mortise w/Intergal Cast Studs, and Anti_Friction Bearings able to support a 600 lb door (3 Hinges). These hinges are maintenance free

Specifications:

Size: 4 1/2" x 4 1/2" x 3/16" Thick

Material: Investment Cast 316 Stainless Steel

Finishes: US32D (#4 Brush)

Fasteners: 8ea. 1/4-20 x 1/2" Security Torx Flathead

Mounting Template: ANSI/BHMA A156.7

Options Available:

Powdercoat Finish: Any DDS Standard Color



Part No: 7L 4-1/2 FMSS(Shown)

These hinges are designed for Jail environments, they are Full Mortise, and Anti_Friction Bearings able to support a 300 lb door (3 Hinges). These hinges are maintenance free

Specifications:

Size: 4 1/2" x 4 1/2" x 3/16" Thick

Material: Investment Cast Stainless Steel

Finishes: US32D (#4 Brush)

Fasteners: 8ea. 1/4-20 x 1/2" Security Torx Flathead

Mounting Template: ANSI/BHMA A156.7

Options Available:

Powdercoat Finish: Any DDS Standard Color



Full Mortise Electric Transfer Door Hinges

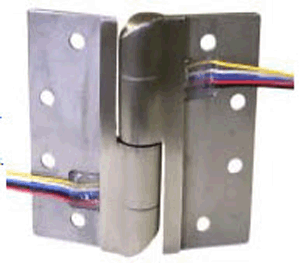

Part No: 7L 4-1/2 FMSS-E(Shown)

These Electric Transfer Hinges are designed for Jail environments, they are Full Mortise, and Anti_Friction Bearings able to support a 300 lb door (3 Hinges). These hinges have 5 concealled wires that are sealed to contain their positon. These hinges are maintenance free

Specifications:

Size: 4 1/2" x 4 1/2" x 3/16" Thick

Material: Investment Cast Stainless Steel

Finishes: US32D (#4 Brush)

Fasteners: 8ea. 1/4-20 x 1/2" Security Torx Flathead

Wire Rating: 5ea. Color Coated 18 AWG Mil-W-16878/4 UL 1213

Mounting Template: ANSI/BHMA A156.7



Prison HD Door Hinges

Part No: 7L 5-FSSL(Shown)

These hinges are designed for Prison environments, they are Full Surface w/Short Leaf, and Anti_Friction Bearings able to support a 600 lb door (2 Hinges). These hinges are maintenance free

Specifications:

Size: 5" x 5" x 1/2" Thick

Material: Fabricated Steel

Finishes: USP (Shop primer)

Fasteners: 3ea. 1/2-13 x 1" Security Torx Flathead

Mounting Template: Not ANSI/BHMA A156.7

Options Available:

Powdercoat Finish: Any DDS Standard Color



Part No: 7L 5-FLS(Shown)

These hinges are designed for Prison environments, they are Full Leaf Surface and Anti_Friction Bearings able to support a 600 lb door (2 Hinges). These hinges are maintenance free

Specifications:

Size: 5" x 6" x 1/2" Thick

Material: Fabricated Steel

Finishes: USP (Shop primer)

Fasteners: 6ea. 1/2-13 x 1" Security Torx Flathead

Mounting Template: Not ANSI/BHMA A156.7

Options Available:

Powdercoat Finish: Any DDS Standard Color
