Detention Access Panels

7590 Utility Access Panel - Lockable

< >

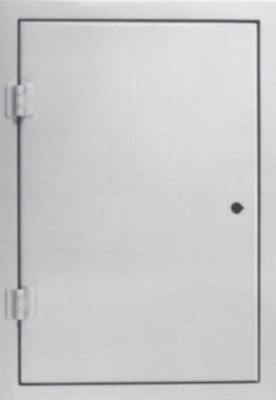

Part No: 7590-02-M0 (Shown)

Description

7590 Utility Access Panels are designed using 10ga steel sheet. The panels are secured to the frame with a security hinges and #12 Deadlock(Sold seperately). The panel is securely bolted to the utility wall for access to the plumbing chase. These panels are powder coated with gray primer for final finish by the owner.

Specifications

Door: 10ga steel construction

Frame: 7ga steel construction

Hinges: 2ea. DetentionGRADE™ 7L 3FP"

Finish: Powder Coat Primer/Gray

Optional Features Available

Lock: 7L 12 Series Deadlock

Stainless Steel: -M6 304-#4 Stainless steel construction

Custom Size: Custom size up to 32" wide x 72" tall

Configuration: Standard sizes available [ Width x Height ]

7590-01-M0 - Door Size 24" x 24"	7590-02-M0 - Door Size 24" x 36"	7590-03-M0 - Door Size 24" x 48"	7590-04-M0 - Door Size 24" x 60"
7590-05-M0 - Door Size 28" x 24"	7590-06-M0 - Door Size 28" x 36"	7590-07-M0 - Door Size 28" x 48"	7590-08-M0 - Door Size 28" x 60"
7590-09-M0 - Door Size 30" x 24"	7590-10-M0 - Door Size 30" x 36"	7590-11-M0 - Door Size 30" x 48"	7590-12-M0 - Door Size 30" x 60"

Custom Sizes are available just contact our Sales Department at - Sales@DDS-Group.com
