Manual Track Set

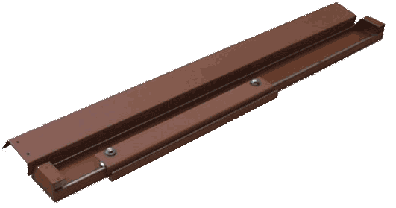

0100-36/42-M (Shown)

Manual Track Sets are used at heavy doors where sliding action is preferred over swing style doors. The door is controlled by the type of lock used allowing the central control to have full control of its position if the lock is electric. To close the door it has to be manually closed. The door can be manually opened with a hip high lock.

Specifications:

Housing size: 7-1/4" x 3-3/4" x 2x (Door Witdh + 6")

Housing construction: 3/16" HR sheet w/10ga HR cover

Door witdhs available: 2'-6" to 6'-0" in 6" increments

End Users

State Correctional Facilities

County Jails

City Police Stations

Federal Correctional Facilities

Border Patrol Stations

ICE Detainee Facilities

Airports

Installation

Installlation Drawings: Engineered installation drawings are included for each area where the product is to be installed

Pre-Installation Proceedure: The mounting surface shall be secure and rigid. All areas where the closure angles are to be mounted need to be free of surface obstacals that would impair a tight secure installation

Installation Proceedure: Use only qualified Journeyman Installers for the installation proceedure. Layout and install the *** enter here ***. Clean and dress any exposed welds prior to paint touchup

Final Finish: It is the OWNERS responsiblity for the paint type, color and application
