Dayroom Tables

Round Top Spider Tables

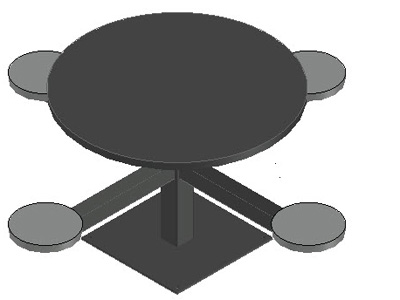

Part No: 7412-4-X-M0 (Shown)

DDS 4-Man Spider Dayroom Tables are designed and manufactured to meet the requirements of all County, State and Federal Building Codes. All tables are assembled using domestic steel, fully welded construction and steel surfaces are Powdercoat Primer/Gray ready for finish painting by others.

Specifications:

Top/Seat material: 42" dia x 1-1/2 11ga steel top, 12" dia x 1-1/2 14ga SSTL seats

Frame material: 4" x 4" x 1/4" steel pedestal with 3" x 3" x 3/16" tube seat arms

Mounting base: 24" x 24" x 3/8" steel

Overall size: 72" dia. x 30" tall

Finish: Powdercoat Primer/Gray on all steel components, #4 Brush on SSTL Seats

Options Available:

Powder Coating: -S Powder Coated in Cardinal Standard Colors from Powder Color Brochure below - Up Charge

Stainless Top: in 304-2B Mill or 304-#4 Brushed finish - Up Charge

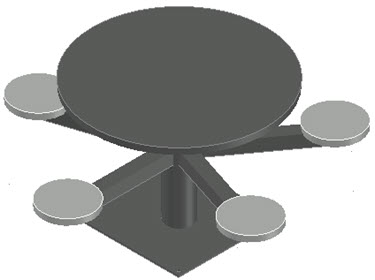

Part No: 7412-5-X-M0 (Shown)

DDS 5-Man Spider Dayroom Tables are designed and manufactured to meet the requirements of all County, State and Federal Building Codes. All tables are assembled using domestic steel, fully welded construction and steel surfaces are Powdercoat Primer/Gray ready for finish painting by others.

Specifications:

Top/Seat material: 45" dia x 1-1/2 11ga steel top,12" dia x 1-1/2 14ga SSTL seats

Frame material: 5" Sch-40 Pipe pedestal with 3" x 3" x 3/16" tube seat arms

Mounting base: 30" x 30" x 3/8" steel

Overall size: 72" x 30"

Finish: Powdercoat Primer/Gray all steel components, #4 Brush on SSTL Seats

Options Available:

Powder Coating: Powder Coated in Cardinal Standard Colors from Powder Color Brochure below - Up Charge

Stainless Top: in 304-2B Mill or 304-#4 Brushed finish - Up Charge
