Detention Door Operators

1300/2300 Rack & Pinion Door Operators

Description

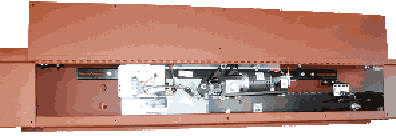

DDS Rack & Pinion Devices are used at Entrance, Sallyports or Cell Lines when full control opening of the door is to be controlled by either central control or a guard with the key to open the door. The door opens at a rate of 36" in 6 seconds and can be reversed to close or open at any point during the cycle allowing the central control or guard have full control of its position. To close the door the central control or guard with a key needs to energize the device so that the door returns to the locked and secure position. The door can be manually opened with the Pilaster Key

Specifications:

Housing size: 12" x 8-1/4" x Length

Housing construction: 3/16" HR sheet transom w/10ga HR sheet covers

Door witdhs available: 2'-0" to 4'-0" in 2" increments

Door heights available: 6'-8" to 8'-0" in 2" increments

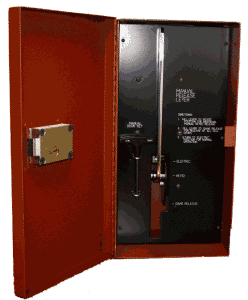

Corridor Pilaster keyed: front, back or both sides

Backplate: is removable

Options Available:

Housing Top: Slope or Flat-Top Style is available

Housing heights: 1'-2" and 1'-4" are available

Electric key switch: Mounted on the Pilaster front, back or both sides

Intercom: Mounted on the Pilaster front, back or both sides

Custom Housing size: for special conditions

End Users

State Correctional Facilities

County Jails

City Police Stations

Federal Correctional Facilities

Border Patrol Stations

ICE Detainee Facilities

Installation

Installlation Drawings: Engineered installation drawings are included for each area where the product is to be installed

Pre-Installation Proceedure: The mounting surface shall be secure and rigid. All areas where the closure angles are to be mounted need to be free of surface obstacals that would impair a tight secure installation

Installation Proceedure: Use only Certified DEC Journeyman Installers for the installation proceedure. Layout and install the vertical columns, transoms and closure angles per the installation drawings supplied true and plumb. Fit and install the fixed door hamger and guide per the installation drawings supplied. When all vertical columns, transoms and doors are measured and tested proceed with the final field welding. Make sure that the door operates freely, locks secure, all DPS switches function properly and all fasteners are tighthened. Clean and dress any exposed welds prior to paint touchup

Final Finish: It is the OWNERS responsiblity for the paint type, color and application
