Rack & Pinion Devices

RPD Corridor Device

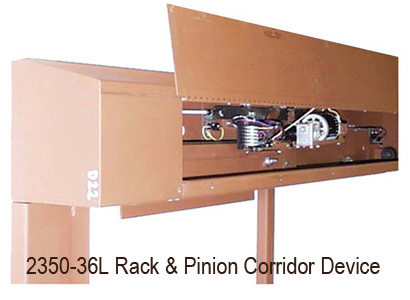

2350 Slope-Top Corridor Device (Shown)

Rack & Pinion Devices are used at Entrance or Sallyports when full control opening of the door is to be controlled by either central control or a guard with the key to open the door. The door opens at a rate of 36" in 6 seconds and can be reversed to close or open at any point during the cycle allowing the central control or guard have full control of its position. To close the door the central control or guard with a key needs to energize the device so that the door returns to the locked and secure position. The door can be manually opened with the Pilaster Key

Specifications:

Housing size: 12" x 8-1/4" x ((2x DOW) + 16-1/4")

Housing construction: 3/16" HR w/10ga HR cover

Door widths available: 2'-8" to 4'-0" in 1" increments

Door heights available: 6'-8" to 8'-0" in 1" increments

Pilaster keyed: Front, back or both sides

Backplate: Is removable

Options Available:

Housing Top: Flat-Top Style is available

Housing heights: 1'-2" and 1'-4" are available

Electric key switch: Mounted on the Pilaster front, back or both sides

Intercom: Mounted on the Pilaster front, back or both sides

Custom Housing size: For special conditions
