Mechanical Locks

Deadlocks

80 Series Paracentric Deadlocks

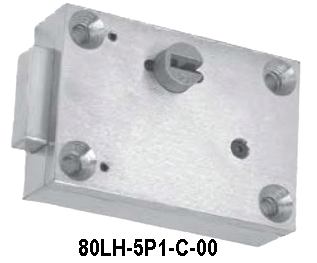

Part No: 7L 82LH-5P1-C(Shown)

The Series 80 Deadlock are used in Swing Door applications, Access Doors and Swing Doors. They use a Paracentric Key that can be keyed on either side or both side. The lock bolt standard throw is 3/4" with 1/2" projection, but is also available in 1 1/4" projection. The lock tumblers a heavy duty brass pick-proof in 5 or 6 plate combos.

Specifications:

Size: 5 1/2" x 3 3/4" x 1 1/2" Thick

Key Cylinder: Paracentric style

Material: Steel

Bolt Material: 3/4" x 2" Steel w/3 hardened pins

Finishes: Zinc plated

Fasteners: 4ea. 3/8-16 x 2" Security Flathead Torx

Mounting Template: Series 80

Options Available:

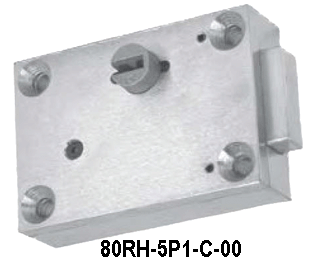

Cylinder Key Cut: 7L 82RH-5P1-"A" or "C"

Keyed Both Sides: 7L 86RH-5P2-C

Six Tumbler: 7L 82RH-6P1-C
