DetentionGRADE™ 1/4" Mesh System

7750B Medium Security 1/4" Mesh Doors & Frames

Description

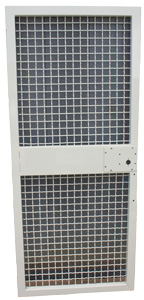

7750B Medium Security Mesh Doors are used where contained security is required but air flow and audible communications are demanded. DDS 7750D Medium Security Mesh Doors are constructed using 1/4" diameter woven rod on 2" centers and welded at each intersection within the tubular frame. The horizontal, intermediate and vertical framing is constructed from 2" x 2 1/2" formed 12ga sheet closed shapes. We include all closure angles and mounting clips for installation.

Areas where typically used

7750B Medium Security Mesh Doors - The 1/4" dia. wire mesh system is used in Medium Security rec yards, holding cells, corridor doors and visitation areas.

Specifications

Security Level: Medium Security Level

Hinges: There are 3-ea. 7L 4-1/2 FMSSICS supplied and factory installed

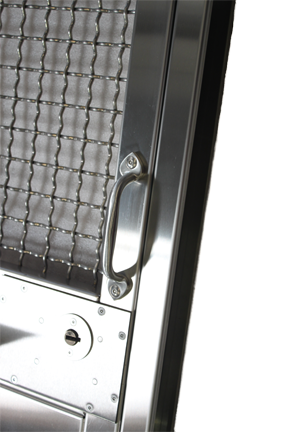

Door Pull: There is 1-ea. 7L 2-US32 supplied and shipped loose

Material: 12ga HR sheet steel tubular frame construction

Finish: Powder Coat Primer/Gray for finish coat as directed by the owner

Optional Features

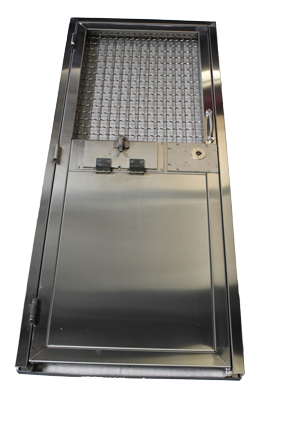

Material: -M5 12ga 304-2B Stainless Steel or -M6 304-#4 Brushed Stainless Steel construction for rust control

Deadlock: 7L 82LH-5P1-C Lock for Officer control of opening and closing the door

Snaplatch: 7L 17LHRB-5P1-C Lock for Inmate control of closing the door and officer control of opening the door

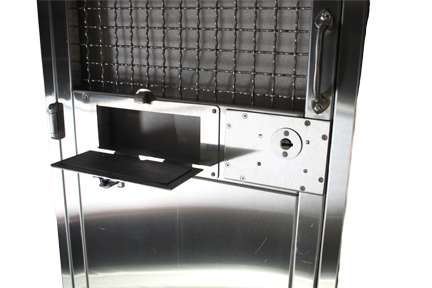

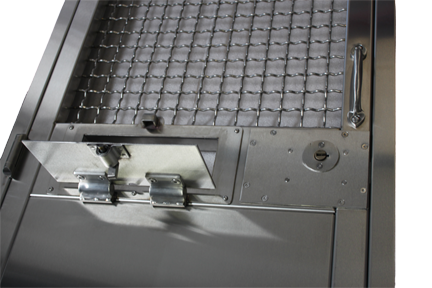

Cuff Pass Door: SideWinder Cuff Pass with a either a Snaplatch or Deadlock

Finish: Powder Coat Primer/Gray for finish coat as directed by the owner

Powder Coating: Powder Coated in DDS Standard Colors from Powder Color Brochure below

Pricing & Shipping

Pricing: Contact the Sales Department for your configuration and pricing - Sales@DDS-Group.com

Shipping:The Door and Frame are shipped fully assembled, vertical wall mounts are seperate and usually require anchor bolts(supplied by DEC).
