Detention Bunks

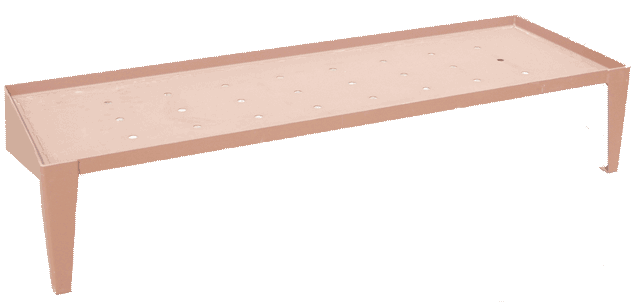

Wall/Floor Mtg Single Bunk

Part No: 7503-1/2-X-M0

Description

Wall/Floor Mtg Bunks are designed and manufactured to meet the requirements of County, State and Federal Building Codes. All bunks are assembled using Domestic Steel, welded construction and Powdercoated Primer/Gray for finish painting by contractor after installation. Pans are perforated for ease of cleaning and provides mattress ventilation.

Specifications:

Material: -M0 12ga steel pan with 7ga formed steel legs

Mounting holes: 4ea. 1/2" holes at wall mtg - 2ea. 1/2" holes at legs

Bunk pan size: 27" deep x 80"wide

Finish: -X Powdercoat Primer/Gray for ferrous metal bunks

Options Available:

Extra strong pan: 10ga HR Steel bunk pan

Stainless Steel pan: -M8 12ga 3cr12(Powdercoated Primer/Gray or -M5 12ga 304-2B Mill Finish

Embeds: 2ea. 1/4" steel wall embeds for CMU or Concrete conditions

Storage shelf: 1 or 2 under bunk welded storage shelf

Powder Coating: -S in any standard DDS architectural color below

Powder Color Brochure
