DetentionGRADETM Access Panels

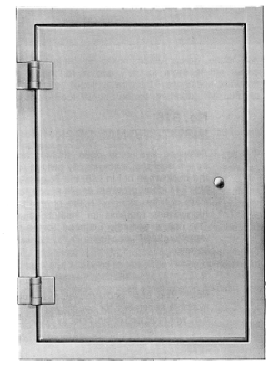

7416.tif (165190 bytes)

DDS Security Access Panels are used in areas where utilities or plumbing chases are accessible to inmate tampering.  The panels are supplied for a No. 12 lever tumbler lock.  Specify whether embedded in concrete or CMU walls.

















Models Available

bulletModel 7415 - 24" x 36" Lift-out type panel has a 22" x 34" clear opening with a flush hand hold for easy removal.
bulletModel 7416 - 24" x 36" Swing-door type panel has 22" x 34" clear opening and two No. 3FS hinges welded to door and frame.

Standard Features

bulletHeavy duty fully welded construction
bullet7ga. steel door with 1-1/4" flanges
bullet3/16" x 2" x 3" steel angle frame
bullet24-3/8" x 36-3/8" Rough opening
bulletUSP primed for painting
